Accessory Switch (on Instrument Nacelle)

Help - can someone point me to the 'affected' plug relative to the 'Fork / Instrument Accessory Switch' on my 11 Road Glide ??


Sent from Motorcycle.com Free App
car t shark is offline
Sponsored Links
Advertisement

post #2 of 7 (permalink) Old 08-12-2013, 07:41 PM
Life Member

throttles&triggers's Avatar

Join Date: Jun 2013
Location: Kansas
Posts: 1,860
Check the info on this related thread.

https://www.roadglide.org/showthread.php?t=16554

Scroll to pages 10-12 below.
http://www.epiphanybullterriers.com/...ewsLetter2.pdf

Here is the HD switched harness:
http://www.harley-davidson.com/store...dapter-harness

Here is some other information that may be helpful:

The receptacle is located under the seat and is a plastic dark colored rectangular box with a sealing plug in one end and 4 wires coming out the other end. This connector is a 4 pin Deutsch DT series. It has nothing to do with your Aux lights or the switch that controls them.

These are the circuits that the Acc switch controls.

Circuits For Touring Models:

Pin 1 Orange/Red - Circuit powered when Ignition ON or ACC position
Pin 2 Red/Yellow - Circuit powered when Brake Light Circuit (on when brakes are applied)
Pin 3 Orange - Circuit powered when Ignition ON or ACC position and nacelle switch ON
Pin 4 Black - Battery Ground

Last edited by throttles&triggers; 08-12-2013 at 07:44 PM.
throttles&triggers is offline
post #3 of 7 (permalink) Old 08-12-2013, 08:39 PM
Life Member

Join Date: Jun 2012
Location: Pac NW
Posts: 4,092
Damn I was just going say that lil box plug under the seat in front of the battery, the one i spliced into
reds4 is offline

post #4 of 7 (permalink) Old 08-12-2013, 08:50 PM
Life Member

throttles&triggers's Avatar

Join Date: Jun 2013
Location: Kansas
Posts: 1,860
Quote:
Originally Posted by reds4 View Post
Damn I was just going say that lil box plug under the seat in front of the battery, the one i spliced into
I find that the more complicated you make it sound, the easier it turns out to be!
throttles&triggers is offline
post #5 of 7 (permalink) Old 08-12-2013, 09:16 PM Thread Starter
Newbie

Join Date: May 2012
Location: Longview, TX
Posts: 8
Well Throttles - I 'think' I may have found it ??? In an '11, is it here at the fuse box Sir ?? Or should I pull the battery to find it ??ImageUploadedByMO Free1376360152.357676.jpg
I couldn't detect power w' my meter the other day when I tried this plug
Thanks Everyone for your input


Sent from Motorcycle.com Free App
Attached Images
File Type: jpg ImageUploadedByMO Free1376360112.017096.jpg (15.9 KB, 18 views)
car t shark is offline
post #6 of 7 (permalink) Old 08-12-2013, 10:15 PM
Life Member

Triplej's Avatar

Join Date: Oct 2011
Location: Nevada, TX
Posts: 5,434
Quote:
Originally Posted by car t shark View Post
Well Throttles - I 'think' I may have found it ??? In an '11, is it here at the fuse box Sir ?? Or should I pull the battery to find it ??Attachment 46137
I couldn't detect power w' my meter the other day when I tried this plug
Thanks Everyone for your input


Sent from Motorcycle.com Free App

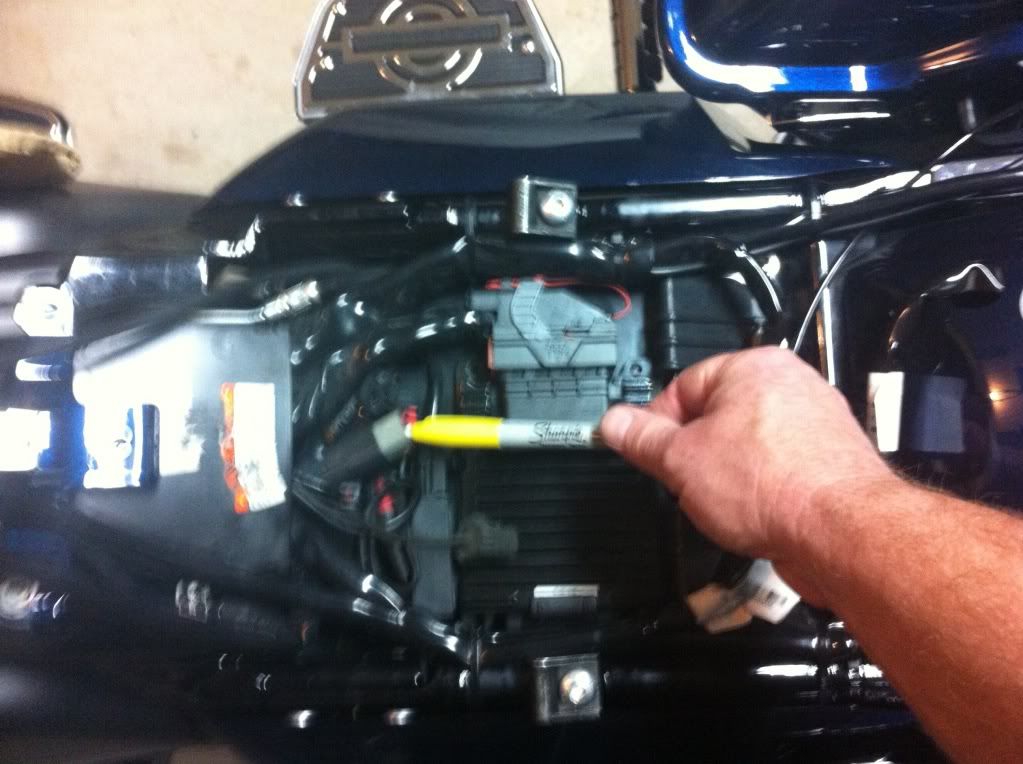

That is not the plug you are looking for. Its the one located under the seat you will need to plug into for accessory power. Sorry the pic is kind of fuzzy but you should get the idea.

[IMG][/IMG]


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Triplej is offline
post #7 of 7 (permalink) Old 08-12-2013, 10:23 PM Thread Starter
Newbie

Join Date: May 2012
Location: Longview, TX
Posts: 8
Awesome - ill try to find it tomorrow after work ?? Thanks Again for everyone's Help !!! Means the World to Me !!


Sent from Motorcycle.com Free App
car t shark is offline
