How to rebiuld you starter motor for $11.00

Just thought i would add my contribution to the members as many have done for me.
I do this for a living now days and the starter on our bike is very reliable and can give years or service save for one component the contacts. Mind you a new starter is between $195 and $360 so with a little work and about $11.00 you can get more life out of the unit you have.

1. disconnect negative terminal on the battery.

2. remove battery cable at the starter and remove starter switch wire.

3. remove the starter.

4. once on the bench




5. remove the 3 scews covering the plunger and contacts



6. remove the plunger



at this point you'll know right away if the contacts are worn out as seen in the picture this will give you a click no crank issue.

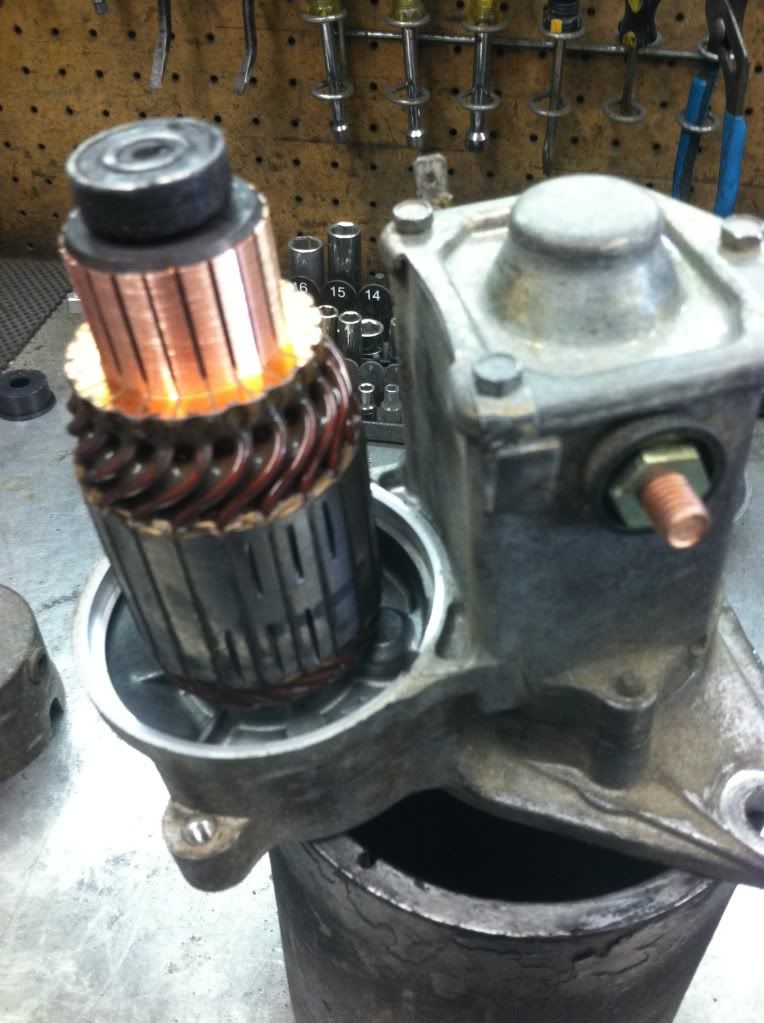

7. next remove the nut and jumper wire from solenoid to motor case seen in pic 1

8. then remove the nuts holding the contact studs (one side at a time is best so as not to get studs or contacts mixed up)

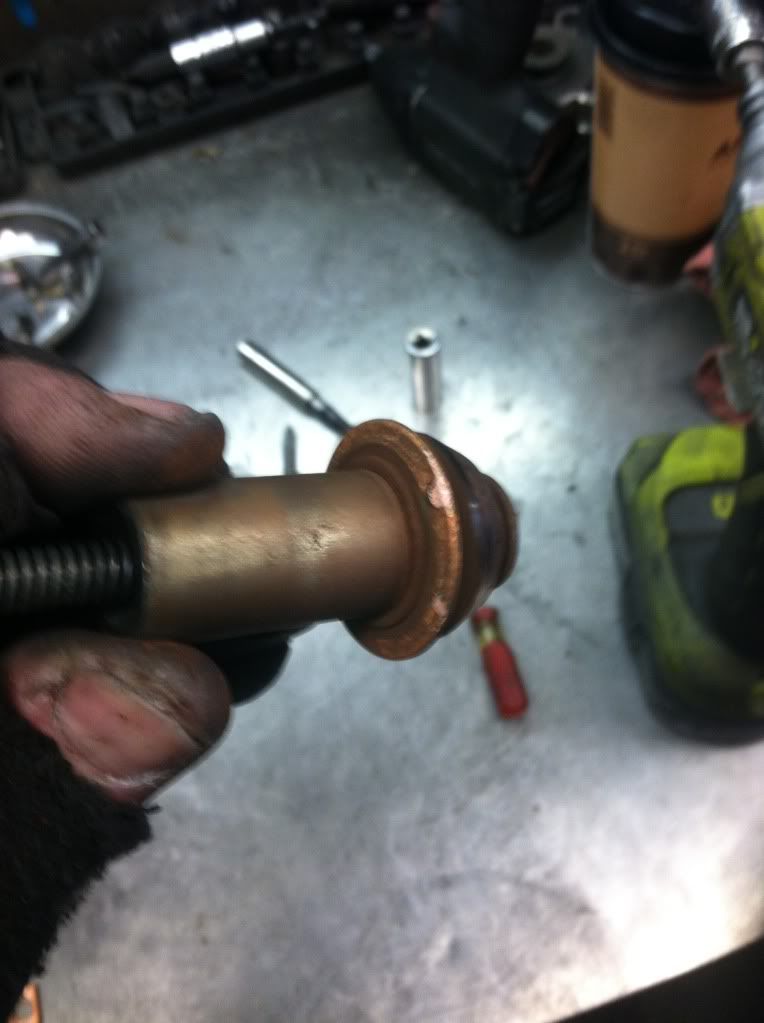

note: the difference between worn and new

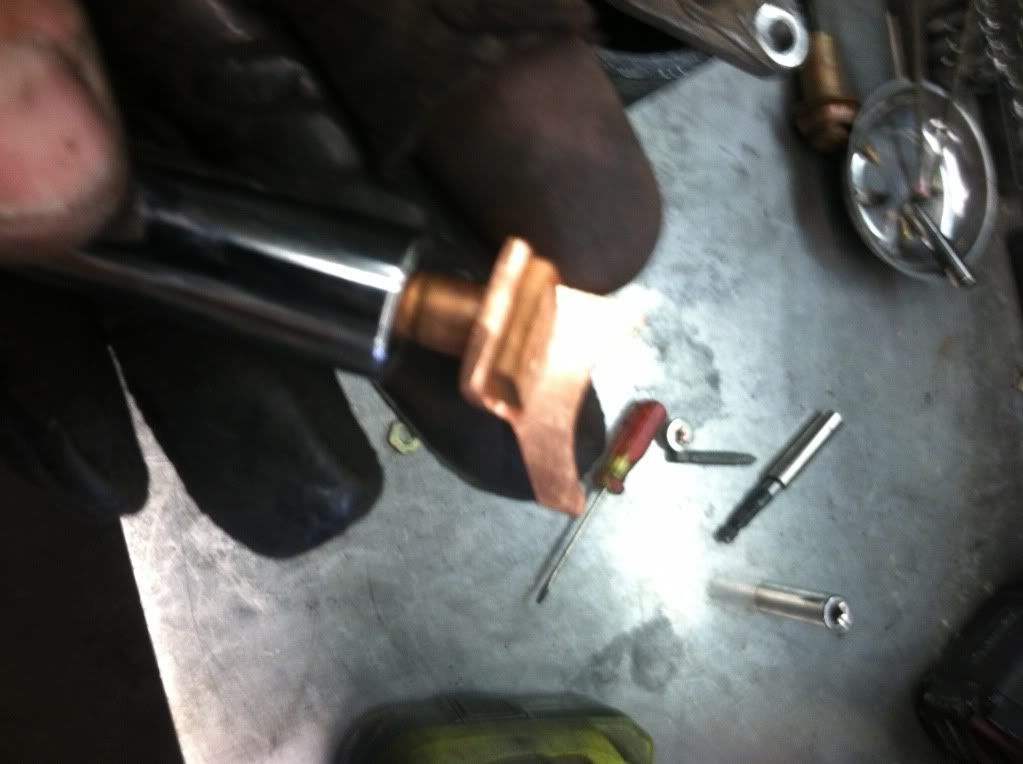

then pry off the contacts from the studs and replace new

" wishin' my knees were in the breeze!!!"

Last edited by lundboy1; 12-18-2013 at 01:03 PM.
lundboy1 is offline
Sponsored Links
Advertisement

post #2 of 17 (permalink) Old 12-18-2013, 01:02 PM Thread Starter
Gray Beard

lundboy1's Avatar

Join Date: Jan 2013
Location: Eastern Idaho
Posts: 1,521
Garage


i use a 7/16 deep socket and small hammer to seat the new contact on the stud.

8. repeat step 7 on the other side with the finish as such



9. clean the plunger on a wire wheel on the bench grinder or emery cloth





10. replace plunger and spring assembly into the solenoid housing and replace cover and screws.

while you have it out you can also inspect the brushes and armature

emery cloth works well on the armature





the easiest way to inspect is just remove the back cover on the motor portion of the starter 2 small screws and 2 long then holding the winding case tap the rear cover off with a small hammer the further in the brush spring is the more worn the brush is.

I can post more pics if necessary.
newfie likes this.

" wishin' my knees were in the breeze!!!"
lundboy1 is offline
post #3 of 17 (permalink) Old 12-18-2013, 01:23 PM
Member

staush's Avatar

Join Date: Jan 2011
Location: LAS VEGAS,NV
Posts: 593
Starter

Great article. One note, that's the commutator you clean,not the armature. And when you clean it take emery cloth and go in same direction that it turns, not up and down. One question, where did you get contact parts from?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2011 Road- Glide Custom-stock engine w/K&N air filter. I like it quiet.
staush is offline

post #4 of 17 (permalink) Old 12-18-2013, 01:41 PM Thread Starter
Gray Beard

lundboy1's Avatar

Join Date: Jan 2013
Location: Eastern Idaho
Posts: 1,521
Garage
I sale them all day long but I'm not soliciting as per the rules of the forum.
You can get them from a local starter or alternator rebuilder such as myself or a search on the Internet for Nippon denso contacts


Sent from Motorcycle.com App

" wishin' my knees were in the breeze!!!"
lundboy1 is offline
post #5 of 17 (permalink) Old 12-18-2013, 02:24 PM
Administrator

dbell66253's Avatar

Join Date: Feb 2011
Location: South Florida
Posts: 12,236
Garage
Great write up, this should be a "sticky". If my starter ever goes south, I'll be looking for this thread.

Sent from my SPH-L710

2010 FLTRX With Plenty of extras, goes by the name "Hardeshia"
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Also not pictured 2016 FLTRXS and 2017 FLTRXS, you never can have too many SHARKS......
dbell66253 is offline
post #6 of 17 (permalink) Old 12-18-2013, 02:54 PM
Administrator

JacktheBagger's Avatar

Join Date: Apr 2010
Location: Bama
Posts: 9,412
Garage
sticky it is

JtB

So Many Highways So Little Time
2011 Ultra
JacktheBagger is offline
post #7 of 17 (permalink) Old 12-18-2013, 04:15 PM
Grey beard

9over's Avatar

Join Date: Nov 2011
Location: catskill mtns ny/ winter in Fl
Posts: 805
Well done!!!! and thanks.
9over is offline
post #8 of 17 (permalink) Old 12-18-2013, 06:24 PM
Life Member

Join Date: Jun 2012
Location: Pac NW
Posts: 4,093
If starter ever goes, it'll will go to the east to Lundy1, Are there core charges? Do you swapmeet type ganantee? HD starters do seem to last longer than some common auto/truck ones. 90k on one 63 on other never problem. Can you DISPELL any of the (as I do ) jumping off the starter hot mistruth??
reds4 is offline
post #9 of 17 (permalink) Old 12-19-2013, 07:39 AM
Member

Join Date: Oct 2012
Location: Kathleen, GA
Posts: 498
Good job on this write up with pictures.

Just a note....... when you remove the plunger, I believe there is a ball bearing that sits in the bottom of the hole that the plunger comes out of. You can see the little shiny ball bearing in Picture 6, sitting in the bottom. If you turn the starter over with the plunger removed, that bearing can (will) fall out so be careful when you are vacuuming or shaking the dust and stuff with the plunger removed. Don't lose the bearing.

Do you recommend replacing the plunger while you are replacing the contacts?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
2013 FLTRU, Jackpot 2/1/2 Stainless Ceramic Coated Head Pipes, Fuelmoto Stage 1 Intake, Power Vision, Jackpot Full Size Ceramic Crossover, MADSTAD 16" Windshield, Motolight Running Lights, Nostalgic Rails, Airhawk R, Hayden Primary Tensioner, V&H Roland Sands Slant Slip-Ons
Captain13 is offline
post #10 of 17 (permalink) Old 12-19-2013, 09:41 AM
Life Member

OldNerdGuy's Avatar

Join Date: Oct 2010
Location: St. Peters, MO
Posts: 3,426
One additional suggestion, for those who are doing this.

While you have it apart, replace the starter clutch. This is another of those parts on the bike that will fail! Not if, but when. Especially if you have added any compression to your motor, it will go. Another weak part, but this one is not made by HD, rather by Toyota (Nippon Denso), who makes the starters.

Here is a link to a thread on HD Forums with a How-To
OldNerdGuy is offline
